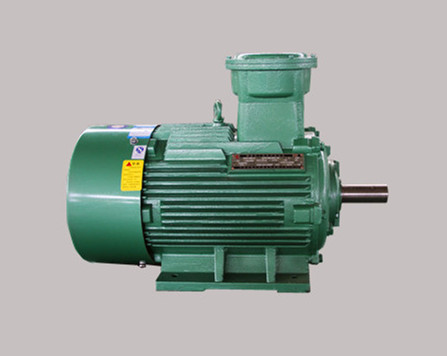

YBX3 series explosion-proof ultra-efficient dust explosion-proof motor (center high 80-335)

1. Overview

  YBX3 series explosion-proof dust explosion-proof motor three-phase asynchronous motor (frame number 63 ~ 355) (hereinafter referred to as motor), in accordance with GB3836.1-2010 "explosive environment Part 1: General requirements of equipment" and GB3836.2-2010 " Explosive environment Part 2: Equipment protected by flameproof enclosure "d" GB 3836.3-2010 "Explosive environment Part III: Equipment protected by increased safety type", made of explosion-proof type, explosion-proof mark: Ex tD B21 T135 ℃, can cover Ex tD B22 T135 ℃, Ex tD A22 T135 ℃, Ex tD A21 T135 ℃, can replace YFB series DIP B21 TB, T4 / DIP A21 TA, T4 dust explosion-proof motor. Both for the factory with flammable gas sites, but also to meet the flammable dust sites and flammable fumble of the place. Motor electrical performance - JB / T7565.1-2011 "Flameproof type three - phase motor - Part 1: YB3 series flameproof three - phase asynchronous motor (frame number 63 to 355)".

Motor explosion-proof performance in line with GB3836.1-2010 "Explosive environment Part 1: General requirements for equipment" and GB3836.2-2010 "Explosive environment Part 2: Equipment protected by flameproof enclosure" d "GB 3836.3-2010" Explosive Environment part III: equipment protected by increased safety type ".

2 product model and significance

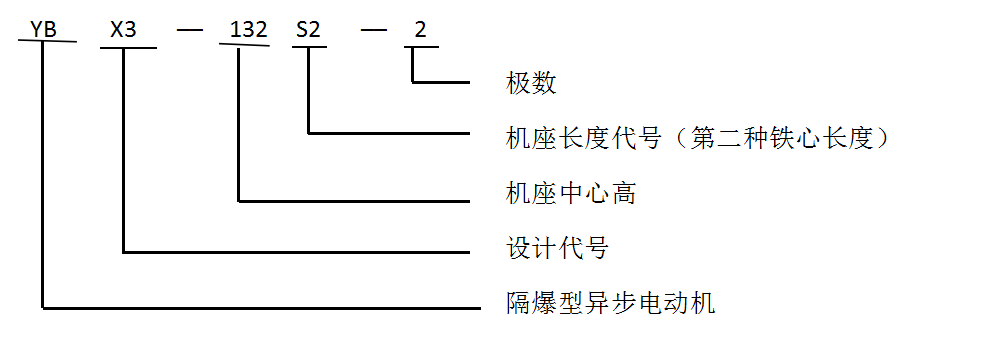

YBX3-132S2-2

YB: Explosion-proof Asynchronous motor

X3:Design code

132: Frame center height

S2:Frame length code( short frame second core length)

2: pole

3. Basic parameters
Rated voltage: 380V, 600 V, 1140 V, 380/660 V, 660/1140 V
Rated frequency: 50HZ
Power range: 0.37-375KW
Insulation class: F
Protection class: IP65

Cooling method: IC411
Explosion-proof grade: Ex d IIC T4/Ex tD B21T130℃

3. Terms of use and conditions of use

Ex d IIC T4 Gb / Ex td B21 T135 ° C Suitable for use in places with flammable gas also suitable for places with flammable dust and flammable fumes (eg feed, textile, flour, cement, etc.)

4.1.1 ambient air temperature changes with the season, generally not more than 40 ℃;
4.1.2 altitude of not more than 1000m;
4.1.3 ambient air maximum relative humidity of not more than 95% (when the temperature is +25 ℃);

4.1.4rated voltage of 380V, 660V, 1140V, 380 / 660V, 660 / 1140V.

4.1.5 Rated frequency:50Hz

4.1.6The motor quota is the continuous working standard, the working type is S1.allowing full pressure to start directly.
4.1.7The motor uses F-class insulation, the stator winding temperature rise (resistance method) by 80K assessment (including frame number 315L 2,4 pole and frame size 355, allowing 105K assessment).

5. Product selection guide

Explosion-proof type:Exd1Mb is suitable for coal mines

Explosion-proof type:Exd11Bt4 Gb is Suitable for use in factory has flammable gas (propane ethylene)

Explosion-proof type:Exd11Ct4 Gb is Suitable for use in factory has flammable gas(Hydrogen. Propane ethylene)

Explosion-proof type: ExtdB21 Db is Suitable for use in factory has flammable dust and flammable flies(such as feed, textile, flour, cement, etc.)

Explosion-proof type: Exd11Ct4 Gb/ExtdB21 Db It is suitable for places where the factory has flammable gas and meets flammable dust and flammable flies (such as feed, textile, flour, cement, etc.).
